This guide will assist you in sharing and deploying your AI Tool by configuring the Tool output for a clearer, more understandable result.

After Tools are created, we want to ensure, they are user-friendly and the output(s) are configured correctly.

Add a description

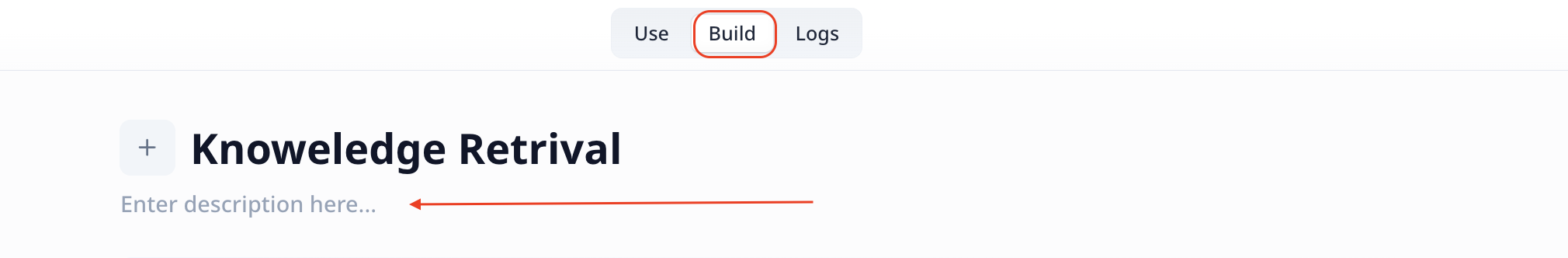

On your Tool, use the “Build” tab and add a description on top. This simple step can make your Tool UI look more professional and easier to understand. Tool description

Tool description is proven to be important in Agents performance.

LLM step output

The LLM component provides you with various outputs. You can set what to include on the Tool to avoid confusing users. On the “Build” page, scroll to your LLM component and click on Output on the top right of the component.

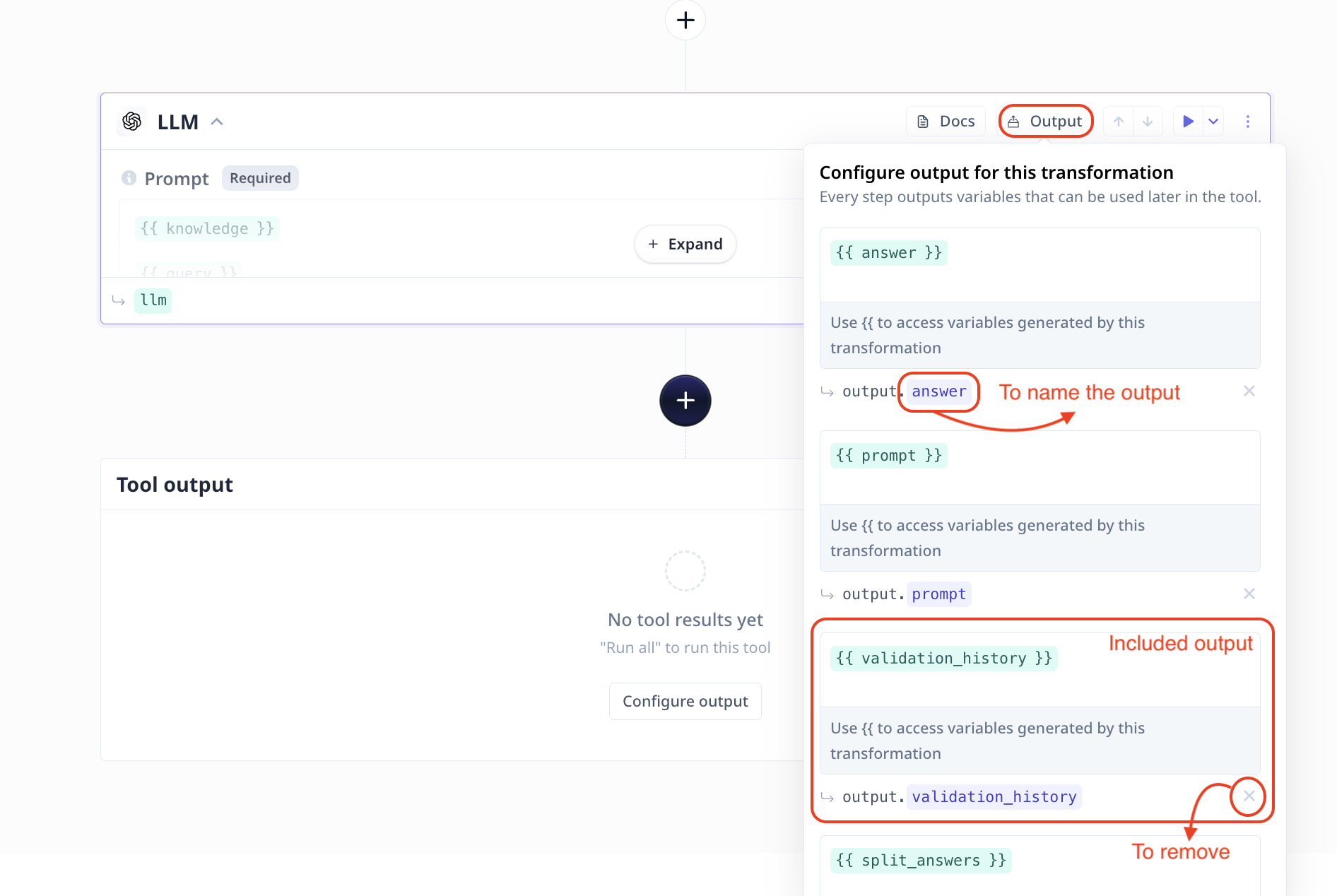

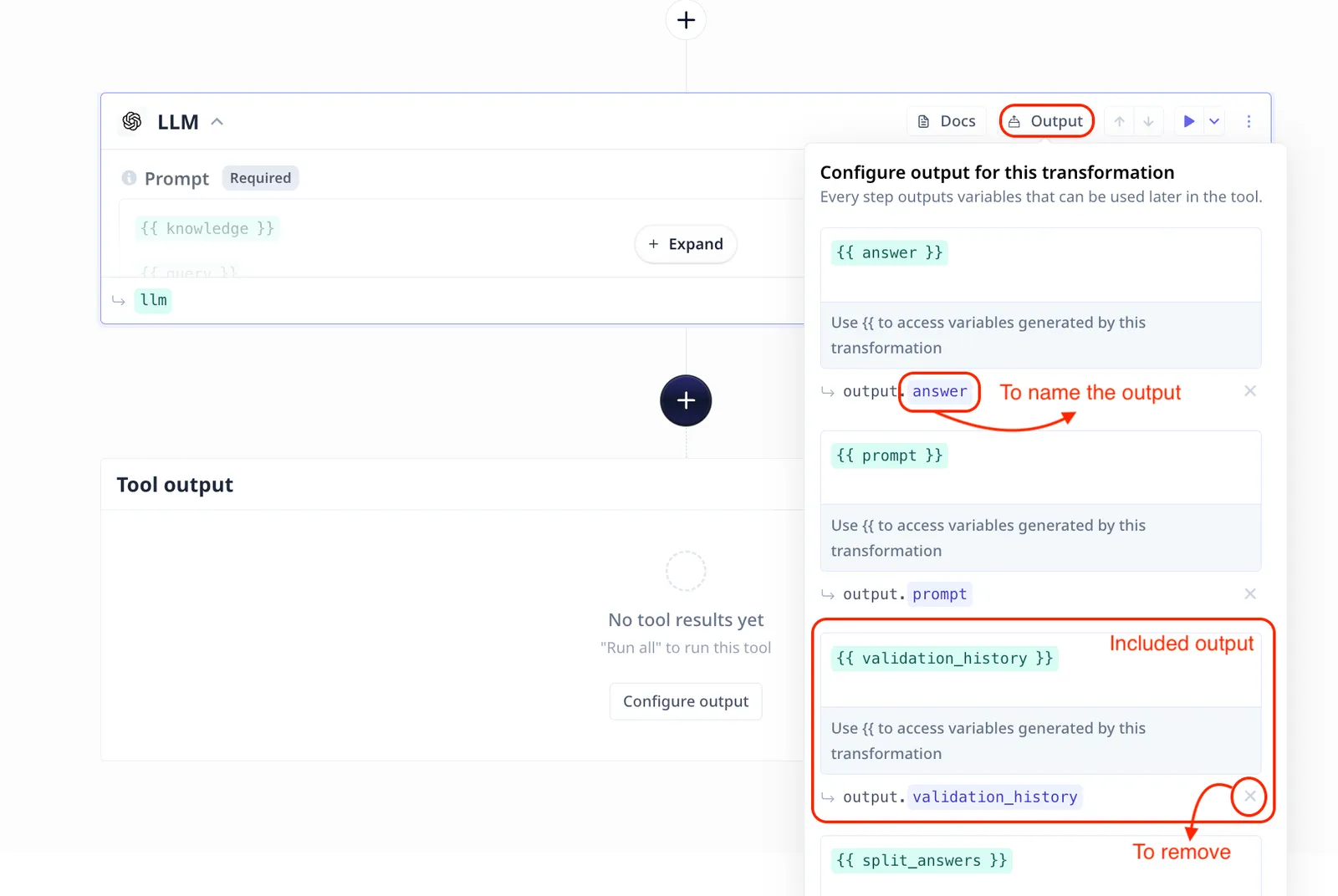

Simplify LLM output.png

Note that you can rename each output by clicking on the name (written after output.). You can remove the output by clicking on x on the bottom right.

Tool output

On the “Build” page, scroll to the bottom of the page to find “Tool output” box with a “Configure output” button in the center. By default, Tools return the output of the last step. You can change the output name and modify the setup.

Name your output

If you wish to customize the output, first click on Configure output and disable “Infer output from last step of tool”. Using {{}} select the desired output variable. For example the answer from a LLM step. Note that when you type in {{, the platform provides you with all the available items. Simply click on the desired one, for instance {{llm.answer}}. If there is an LLM component in your tool called llm whose output is saved in a variable called answer.

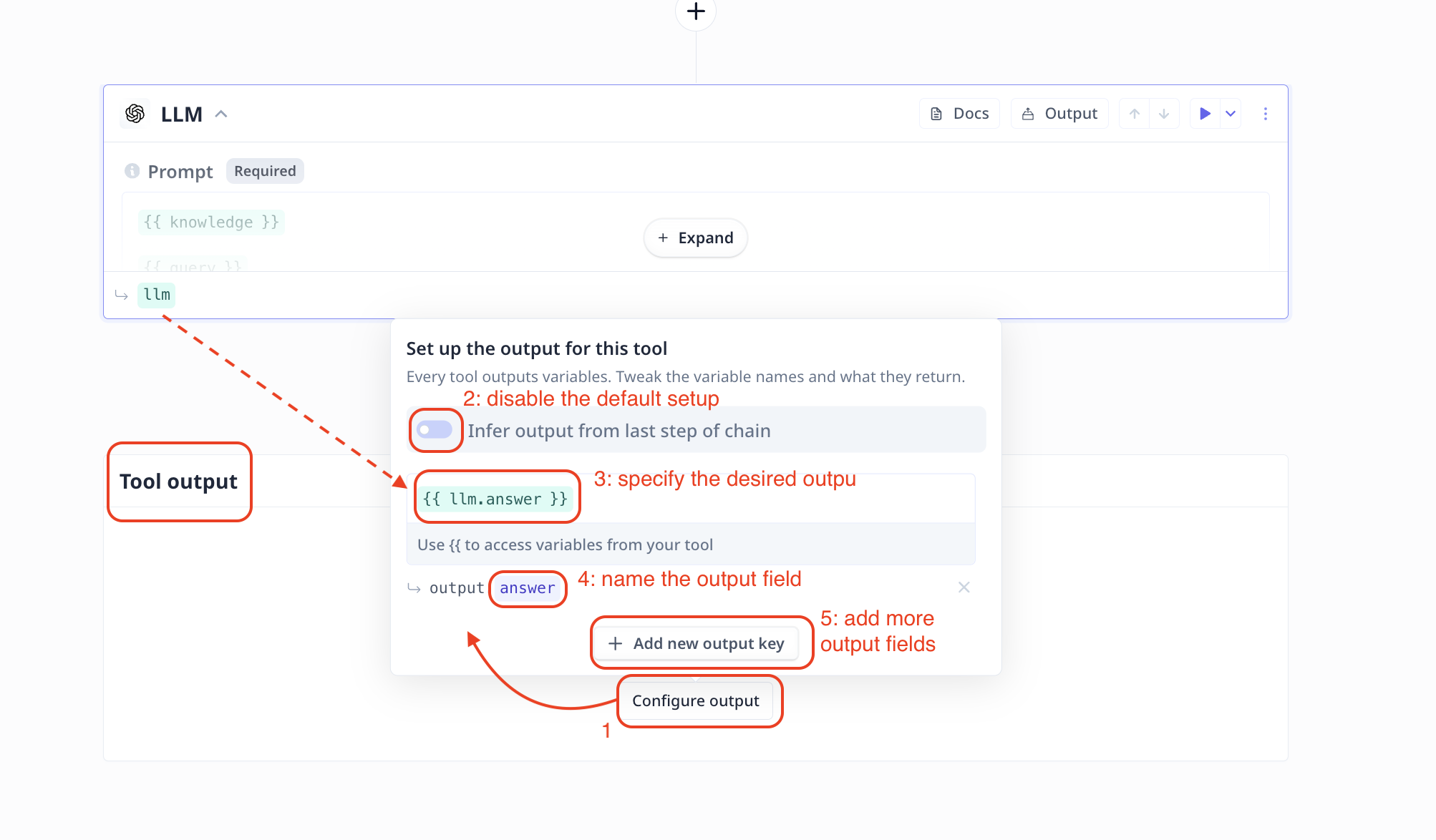

Configure LLM output.png

Keep in mind that similar to all other outputs, it is possible to also name the final output filed to make it much more user-friendly. In the picture above, we have named the output ‘answer’ (marked with number 4).

Choose multiple outputs

On the “Set up the output for this tool” page, click on Add new output key to add more output variables to your Tool. Using the X on the bottom right of each entry, you can remove them.

Add references to Q&A apps

With Relevance, it is very easy to create a Q&A app on your knowledge-base using our Knowledge feature. However, a common question we are asked is how to include references in the response. In this page, we explain three steps to address the referencing concern.

  1. Adding fields to use as a reference

    To be able to create references, you need to make sure the context you provide to the LLM includes a field that you can use as a reference. Such a reference is typically a URL, a filename, an article title or a product name. This means, if you are uploading a CSV to Knowledge, you need to ensure the CSV file includes a column that can be used as a reference.

    When uploading a PDF or an audio file to Relevance, a filename column will be automatically created. This field can be used as a reference. Naming the files wisely can help with referencing.

    As an example, we are using a CSV including columns “title”, “content” and “url” and each row refers to an article from our support documentation.

  2. Configuring your Knowledge to include the correct fields

    Under “Advanced options” in the LLM step, you will find a section on How to handle too much text. When “edit” for the knowledge variable is clicked a new page pops open, click on “Advanced options”. “Columns of data to use as knowledge” is where you can specify the desired column(s) name.

    In our example, we include “title”, “content” and “url”. Which means only these fields are fetched from the CSV and loaded to the LLM.

    Screenshot of the column selection modal

    You can configure an LLM “Prompt” output and check what is loaded to the LLM.
  3. Updating your prompt to include the reference

    Finally the instruction to the LLM (the prompt) must indicate inclusion of the reference when a question is answered. In our example, we use the url field as the reference. There are various ways to format the instruction or the output. Here, we tried both JSON and Footnotes.

    Specify the response as JSON in format { answer, references: [{title, url}]" }. Use proper punctuation.
    Never provide URLs that are not included in my messages. You must respond in JSON.

    We have asked for a JSON response that includes an answer and a references field. The references field is an array of objects that have a title and a url field. The title field is the title of the article and the url field is the URL of the article.

    1. Adjust the prompts to suit your data, output and accuracy. LLMs are more than capable of providing references and can even be extended to include quotes.
    2. Few-shot examples of the desired input and output combinations at the start of your prompt is a great way to ensure the LLM mimics your style.

Save and share your Tool

Once you have configured the everything, hit save on the top right. You are ready to share your Tool with your team and colleagues.

A bit out-dated but useful video
