Tool steps are analysis components that are applied to the provided input in a Tool. For example,

  • A LLM step to summarize an input text
  • An PDF-to-Text step to extract the text from and uploaded PDF file
  • A Javascript step to run a code snippet

Relevance support variety analysis steps with all the requirement all taken care of. All you need to do is to add the suitable step component to your Tool.

​
Creating a Tool and adding Tool steps

The easiest way to get started with creating a tool is to start at the Tools page. Once on the page, click on + Create tool on the top right of the page.

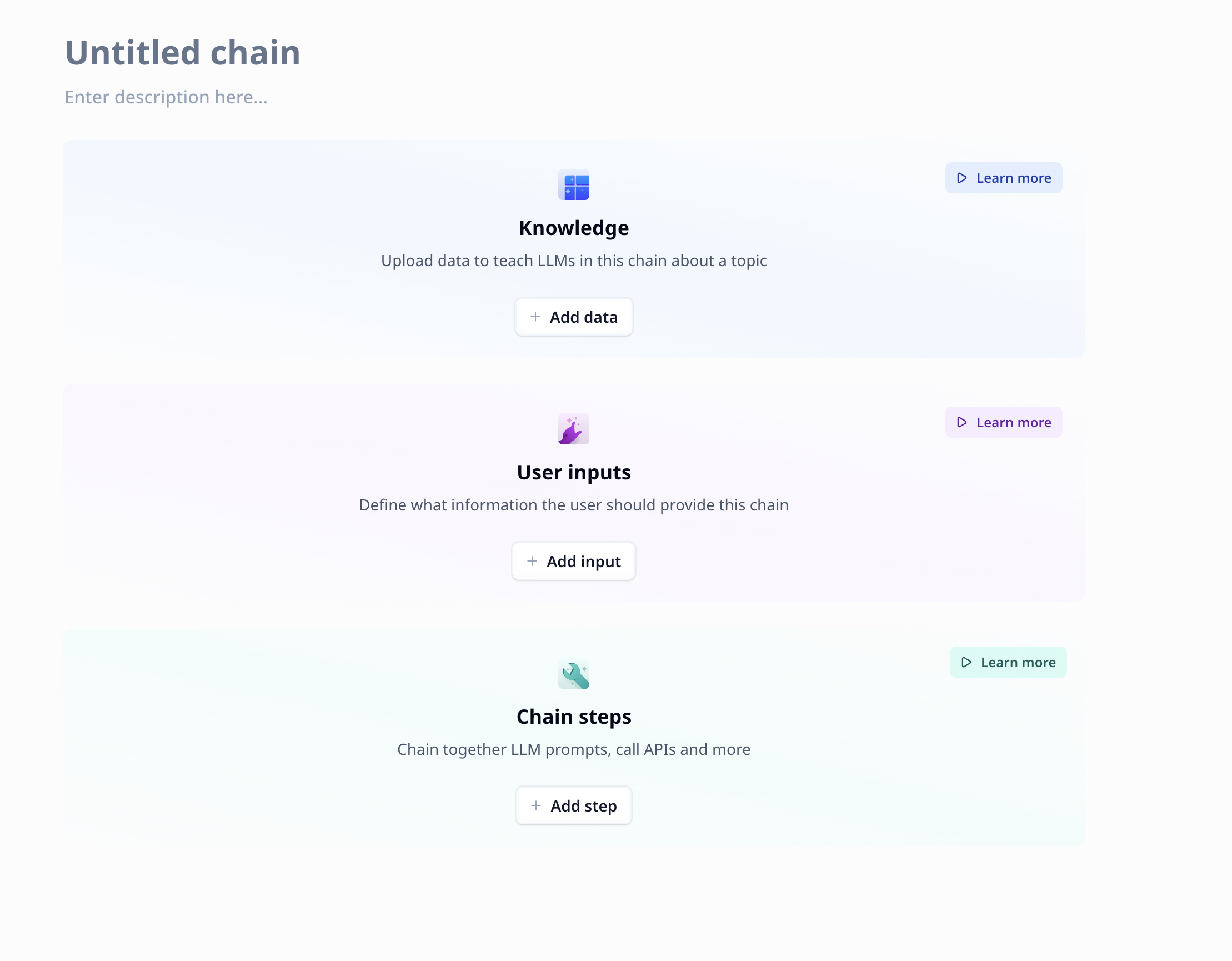

You will be presented with an empty state where you can:

  1. add knowledge
  2. add inputs
  3. add Tool steps
  4. access some video tutorials

In the next pages, we will learn about all the supported Tool steps on Relevance.

Tips:

  1. Each step has a set of inputs, with some visible under “Advanced options”. These inputs are used to configure the step. You can either specify the value or switch to variable mode by pressing "" next to each input. This will instead set the value to the variable you reference.
  2. Each step will have a set of outputs. These are the values that will be passed on to the next step. You can configure the outputs by pressing “Configure output” and selecting the variable names you want to keep.
  3. Each step has a variable name, shown in green on the tool, which is used to reference the step and access the output in other steps. For example, you can use {{steps.step_name.output.variable_name}} to reference it. It can be changed just like the inputs.
  4. The order of a step can be changed using the drag indicator or the up and down buttons. Steps can be ran individually, which is helpful for testing, by pressing the play icon.

​
General Tool step features

​
Run a step

Click on the run/play button on the top right of the step to execute it. Results will be displayed under the tool.

Note that there are two options available:

  1. Only run the step
  2. Rerun from the top including the current step

​
Delete a step

Click on the three dot menu located on the top right and select Delete from the menu.

This will remove the step completely from your Tool.

If you have used the output of a deleted step in any other steps as a variable, don't forget to remove the variable referral or it will cause a runtime error.

​
Output configuration

Click on the Output button on the top right of the step and you can see what outputs have already been configured.

  • Removal of an output can be done via the x on the bottom right of each output
  • Modification of the output name can be done via changing the output variable name shown under the box on the left
  • Adding new output key can be done via clicking on the + Add new output key located under the last output key
  • Access to variables are via {{Name-of-the-available-variable}}, for instance {{transformed}}

More details are available at Output Configuration.

​
Set default values

If you wish to set a default value for a component or change an existing default value, you need to

Saving the changes from the top right of your Tool will not change the default values! You need to explicitly configure the default values on a step.

  1. Type in the desired value
  2. Click on the setting wheel icon located on the bottom right of the step
  3. Click on "Set the current value

Move a step in a Tool

​
Move a step in a Tool

If you wish to relocate a step (i.e. moving it further to the top or bottom of your Tool), simply hover over to the right side of the tool and you will see the "Drag and Drop" icon appearing. Click and move the step to the desired location.

Move a step in a Tool

​
Duplicate an existing step

Click on the three dot menu located on the top right and select Duplicate from the menu.

This will create a copy of the existing step and add it to your Tool.

​
Run a step if a condition is met

If you wish to run a step, only when a condition is met, click on the three dot menu located on the top right and select Add conditions from the menu.

Conditions must follow JavaScript rules and be written in {{}}. For instance,

  • {{text==="XYZ"}} --> the variable called text is equal to XYZ
  • {{text!=="XYZ"}} --> the variable called text is not equal to XYZ
  • {{clean.transformed===""}} --> the output of a code step called clean is an empty string

More details are available at Conditions

​
Run a step multiple times in a loop

If you wish to run a step multiple times, click on the three dot menu located on the top right and select Enable foreach from the menu.

Imagine there is a list of movie names and you wish to run a large language model on each item to generate a summary. After enabling Foreach, under Run this transformation multiple times, provide the list of items on which the loop should work.

Next, use {{foreach.item}} to access each of the elements in your input list.

Screenshot of the Loop input in a step

More details are available at Loops.
